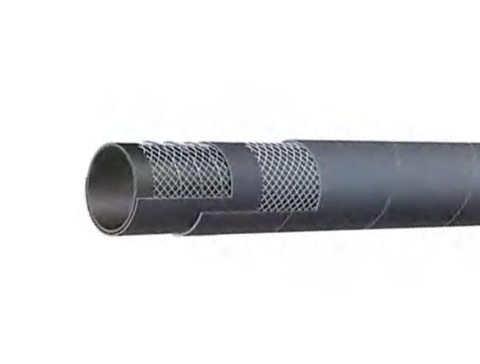

150PSI Black Biofuel Petroleum S&D Hose

150PSI Black Biofuel Petroleum S&D Hose

LT1214

Applications:For suction and discharge applications in truck and tank car transfer of gasoline, oil and Biofuels-up to E98 and B100* with up to 60% aromatic content at ambient temperature

Tube:Black conductive synthetic rubber

Reinforcement:High tensile textile cords and steel helix wires

Cover:Black specially-blended neoprene-added resistance against abrasion, ozone and hydrocarbons

Working Pressure:Constant Pressure-10Bar(150PSI)

Temperature Range:--30℃(-22°F)to +80℃(+176°F).

Specifications

Specifications
Series I.D.
(in.)
I.D.
(mm)
O.D.
(in.)
O.D.
(mm)
Max.W.P.
(psi)
Vacuum HG
(in.)
Min.B.R.
(mm)
W.
(kg/m)
LT1214-075 3/4 19 1.14 29 150 30 3 0.61
LT1214-100 1 25 1.38 35 150 30 4 0.76
LT1214-125 11/4 32 1.65 42 150 30 5 0.89
LT1214-150 11/2 38 1.89 48 150 30 6 1.06
LT1214-200 2 51 2.40 61 150 30 8 1.35
LT1214-250 21/2 63 2.95 75 150 27 10 2.11
LT1214-300 3 76 3.46 88 150 27 12 2.54
LT1214-400 4 102 4.57 116 150 27 16 3.54
