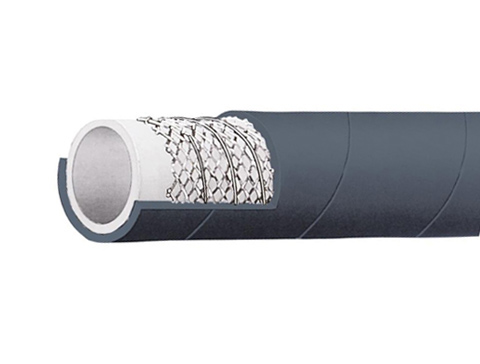

Application：Liquid,fatty,oily food and alcoholic beverage (max 75 proof) suction and discharge .Hose may be sterilized with 5% soda solution.Not recommended for dry abrasive
Cover：Grey NBR/PVC-abrasion,ozone and oil resistant
Reinforcement：High tension wound textile cord and high flexibility spiral steel wire
Inner Tube：White NBR rubber, FDA and 3A requirements
Temperature Range：-30℃（-22℉）~+80℃（+176℉）
Working Pressure：-10Bar(150PSI)
Specifications |
||||||||
Series |
I.D. (in.) |
I.D. （mm） |
O.D. （in.） |
O.D. （mm） |
Max.W.P. (psi) |
V.H. |
Min.B.R. |
W. （kg/m） |
LT1102-200 |
2 |
51 |
2.48 |
63 |
150 |
30 |
6 |
1.61 |
LT1102-300 |
3 |
76 |
3.46 |
88 |
150 |
27 |
6 |
2.54 |
