1、 Basic concepts of high-pressure hoses

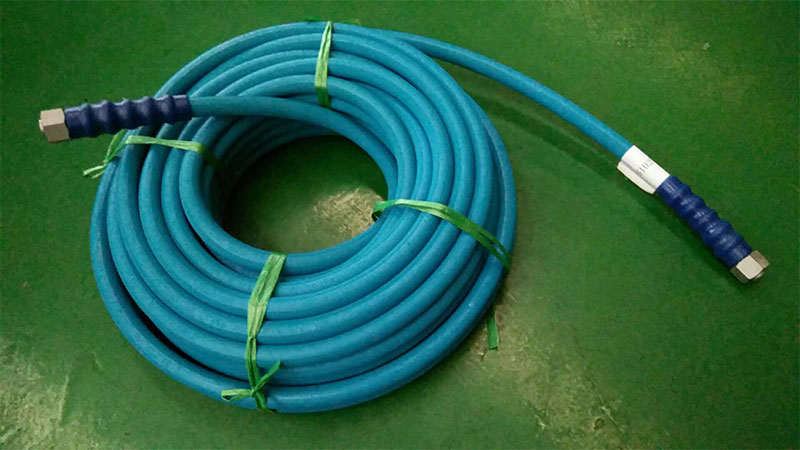

High pressure hose is a specially designed pipeline that can transport fluids under extreme conditions and is commonly used in fields such as oil and gas extraction, chemical engineering, and construction. According to the pressure level, hoses can be divided into low, medium, and high pressure hoses. A high-pressure hose with a pressure of 70MPa represents its ability to maintain stable performance even under working pressure of 70MPa. Such high-pressure hoses are usually made of materials such as polyurethane, synthetic rubber, and special plastics, which have good pressure resistance, wear resistance, corrosion resistance, and other characteristics.



2、 Materials and processes of high-pressure hoses



1. Material selection



The material of high-pressure hoses is one of the key factors determining their performance. In order to withstand pressures up to 70MPa, manufacturers generally choose high-strength fiber weaving and composite materials. These materials not only have superior mechanical properties, but also maintain good flexibility in high-pressure environments. For example, the high-strength fibers used are usually made of materials such as polyester and polyethylene, which can effectively improve the tensile strength of the hose and enhance its durability.



2. Manufacturing process



In addition, the process of manufacturing high-pressure hoses is quite complex, including multiple steps such as extrusion, winding, and assembly. During the extrusion process, the selected raw materials will be melted at high temperatures and extruded into the desired tubular shape through a mold. During the winding process, high-strength fibers are wrapped around the outer layer of the hose at a certain angle to increase its structural strength and durability. The final combination step is to combine various materials through glue, hot melt, and other methods to form a whole, which ensures the sealing and stability of the high-pressure hose.



3、 The function and characteristics of quick connectors



In the application of high-pressure hoses, quick couplings are an indispensable part. The main function of quick couplings is to achieve quick connection and disassembly between hoses and other equipment, providing a guarantee for the flexibility of fracturing operations.



1. Type and Construction



There are various types of quick connectors on the market, such as circular, square, and plug-in, etc. Each type of connector has its own design characteristics depending on its usage scenario. Usually, a quick connector consists of a plug, socket, and sealing ring. The plug and socket can be quickly plugged in and out, and the fluid does not leak through the sealing ring.



2. Materials and Durability



Similarly, the material selection of quick connectors also affects their overall performance. Many quick connectors are made of high-strength galvanized steel, mold steel, stainless steel and other materials to improve their durability. In high-pressure environments, these materials can effectively resist harsh conditions such as high temperature and corrosion, enabling the long-term use of quick connectors.



4、 Adaptation of high-pressure hoses and quick couplings



In practical applications, the compatibility between high-pressure hoses under 70MPa pressure and quick couplings is crucial. Choose a suitable quick connector to ensure a tight connection with the high-pressure hose, thereby avoiding leakage or disconnection caused by improper connectors.



1. Interface standards



During the adaptation process, special attention should be paid to the standardized design of interfaces. The commonly used interface standards internationally, such as NPT and BSP, allow users to choose the appropriate standard according to their own needs to ensure the stability of the connection.



2. Sealing measures



Sealing measures are particularly important to ensure the connection between high-pressure hoses and quick couplings. The material of the sealing ring should also vary for different fluids. For example, for corrosive liquids, fluororubber or PTFE material sealing rings are commonly used to ensure the reliability of the connection.



5、 Installation and maintenance



The installation and maintenance of high-pressure hoses and quick couplings are important tasks to extend their service life and maintain safety.



1. Installation precautions



When installing high-pressure hoses, priority should be given to confirming whether the pressure bearing capacity of the hose meets the on-site working conditions. At the same time, when connecting quick connectors, it is important to avoid over tightening to reduce the risk of material damage. In addition, pressure testing should be conducted after installation to ensure no leakage.



2. Regular inspection and maintenance



The wear and aging of high-pressure hoses and quick couplings during use are inevitable, so regular inspection and maintenance are particularly important. During the maintenance process, the appearance of the hose can be checked for obvious cracks, wear, deformation, etc., in order to detect problems early and replace faulty components in a timely manner. Regularly clean the joint area to prevent impurities from accumulating and reducing the sealing effect.



6、 Future prospects



With the increasing demand for oil, natural gas, and other energy sources, the research and development of high-pressure hoses and quick couplings technology is also constantly deepening. In the future, more high-pressure hoses with intelligence, temperature and pressure resistance, and new materials will appear in the market. In addition, combined with IoT technology, real-time monitoring of high-pressure hoses will become possible, enabling timely detection of potential problems and early maintenance, greatly improving the safety and efficiency of operations.



conclusion



Overall, high-pressure hoses and their quick couplings with a pressure of 70MPa play an irreplaceable role in hydraulic fracturing operations. Only by continuously promoting technological innovation and improving product quality can we better meet the current market demand and bring higher safety and efficiency to the oil and gas extraction industry. I hope that the detailed analysis in this article can help industry professionals better understand the importance of high-pressure hoses and quick couplings, and provide theoretical support for future application practices.
