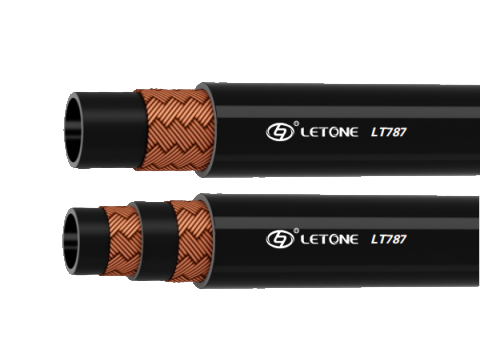

Steel wire braided rubber tube is a key component widely used in the field of high-pressure fluid transmission, and its core structure consists of an inner rubber layer, a reinforcement layer, and an outer rubber layer. The inner rubber layer is usually made of oil resistant and corrosion-resistant synthetic rubber (such as NBR or FKM) to ensure compatibility with fluids; The reinforcement layer is made of high-strength copper plated steel wires interwoven at specific angles to form a mesh support structure, significantly improving the pressure bearing capacity and anti pulse fatigue performance of the pipe body; The outer rubber layer is made of wear-resistant and anti-aging rubber materials to resist the erosion of the external environment. Multi layer steel wire weaving (such as 1 to 4 layers) can be flexibly designed according to pressure requirements, while ensuring interlayer bonding strength through precision weaving technology to avoid local failure caused by stress concentration. This structural design balances flexibility and rigidity, making it suitable for dynamic bending and static high-pressure scenarios under complex working conditions.
Performance advantages and engineering applicability of steel wire braided rubber pipes
Compared to traditional fiber-reinforced rubber pipes, steel wire braided rubber pipes have significant advantages in performance. Firstly, its blasting pressure can reach 50-100 MPa, suitable for high-pressure environments such as construction machinery and hydraulic systems; Secondly, the radial expansion and contraction rate of the steel wire braided structure is less than 5%, ensuring the stability of fluid transmission and reducing the impact of pressure fluctuations on system efficiency; Thirdly, its excellent temperature resistance (-40 ℃ to+120 ℃) and resistance to medium corrosion (such as fuel, hydraulic oil, and weak acid and alkali) have expanded its application range. In addition, by optimizing the wire diameter (0.3~0.8mm) and weaving density (usually 90 °~120 °), the bending radius and pressure resistance level of the pipe body can be balanced. For example, the double wire layer design can achieve a working pressure of 70MPa while maintaining flexibility, meeting the demanding requirements of hydraulic oil pipes for excavators.
Multi field industrial applications and innovative trends of steel wire braided rubber pipes
In the industrial field, steel wire braided rubber pipes have become important components in energy, transportation, and manufacturing industries. In oil extraction, the high-pressure water injection system used for downhole tools is resistant to extreme environments containing hydrogen sulfide; In the automotive manufacturing industry, as brake and fuel delivery pipes, they meet the requirements of international standards such as SAE J1401 for pulse life (>5 million cycles); In the aerospace field, special alloy steel wire reinforced pipes are used to achieve synergistic optimization of weight reduction and high temperature resistance. The current technological innovation focuses on material composite (such as aramid/steel wire hybrid weaving) and intelligent monitoring (with built-in fiber optic sensors for real-time detection of stress distribution), further promoting its development towards ultra-high pressure, lightweight, and intelligence, providing key technical support for industrial equipment upgrading.
Steel wire braided rubber tube is a key component widely used in the field of high-pressure fluid transmission, and its core structure consists of an inner rubber layer, a reinforcement layer, and an outer rubber layer. The inner rubber layer is usually made of oil resistant and corrosion-resistant synthetic rubber (such as NBR or FKM) to ensure compatibility with fluids; The reinforcement layer is made of high-strength copper plated steel wires interwoven at specific angles to form a mesh support structure, significantly improving the pressure bearing capacity and anti pulse fatigue performance of the pipe body; The outer rubber layer is made of wear-resistant and anti-aging rubber materials to resist the erosion of the external environment. Multi layer steel wire weaving (such as 1 to 4 layers) can be flexibly designed according to pressure requirements, while ensuring interlayer bonding strength through precision weaving technology to avoid local failure caused by stress concentration. This structural design balances flexibility and rigidity, making it suitable for dynamic bending and static high-pressure scenarios under complex working conditions.
Performance advantages and engineering applicability of steel wire braided rubber pipes
Compared to traditional fiber-reinforced rubber pipes, steel wire braided rubber pipes have significant advantages in performance. Firstly, its blasting pressure can reach 50-100 MPa, suitable for high-pressure environments such as construction machinery and hydraulic systems; Secondly, the radial expansion and contraction rate of the steel wire braided structure is less than 5%, ensuring the stability of fluid transmission and reducing the impact of pressure fluctuations on system efficiency; Thirdly, its excellent temperature resistance (-40 ℃ to+120 ℃) and resistance to medium corrosion (such as fuel, hydraulic oil, and weak acid and alkali) have expanded its application range. In addition, by optimizing the wire diameter (0.3~0.8mm) and weaving density (usually 90 °~120 °), the bending radius and pressure resistance level of the pipe body can be balanced. For example, the double wire layer design can achieve a working pressure of 70MPa while maintaining flexibility, meeting the demanding requirements of hydraulic oil pipes for excavators.
Multi field industrial applications and innovative trends of steel wire braided rubber pipes
In the industrial field, steel wire braided rubber pipes have become important components in energy, transportation, and manufacturing industries. In oil extraction, the high-pressure water injection system used for downhole tools is resistant to extreme environments containing hydrogen sulfide; In the automotive manufacturing industry, as brake and fuel delivery pipes, they meet the requirements of international standards such as SAE J1401 for pulse life (>5 million cycles); In the aerospace field, special alloy steel wire reinforced pipes are used to achieve synergistic optimization of weight reduction and high temperature resistance. The current technological innovation focuses on material composite (such as aramid/steel wire hybrid weaving) and intelligent monitoring (with built-in fiber optic sensors for real-time detection of stress distribution), further promoting its development towards ultra-high pressure, lightweight, and intelligence, providing key technical support for industrial equipment upgrading.
